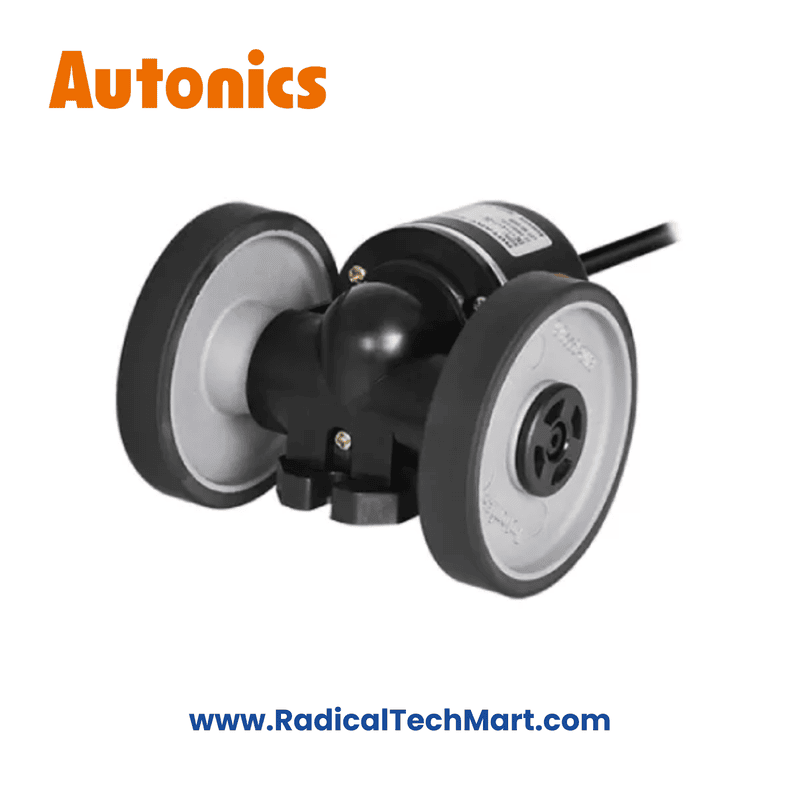

ENC-1-2-T-24 Autonics Rotary Encoder
Non-returnable
₹11,078.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | ENC-1-2-T-24 |
| Max. response frequency | 180kHz |
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Wheel diameter | 250mm |
| Gear ratio | 4:1 |
| Number of pulses | 100 |
| Min. measurement unit | 1m |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Approval | CE |
| Environment Ambient temperature | -10 to 70 Deg C |
| Environment Ambient humidity | 35 to 85% RH |
| Weight | Approx. 494g |
